Glass Plates / Trays
Here for example are just a few different types that we can supply:-
And enter your model number. (see below for an example)

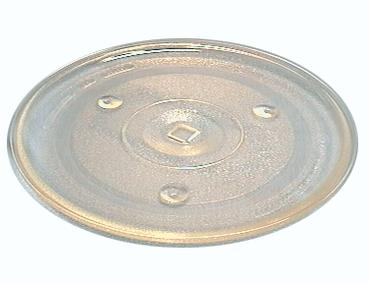

Panasonic ANE0601Q50AP, S-MPAR6002 Drive A11
Goldstar/Matsui 2B71852A

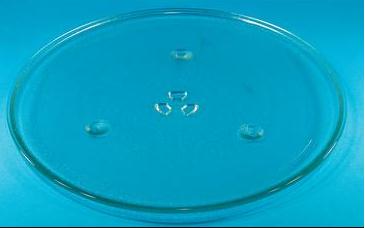

E06014N30BP

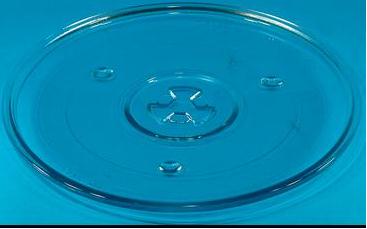

E06017550GP
E06018020BP
2B71852A, M161M, BF7759, M364TC, MA6805E, MA680ME, MA6905E, MA-6905E, 164M, 264TC, M161M, M162TC, M164M, M1706, M264M, MW17M, MW17T, MA690ME, MA6915E, MA692TE, MH6745E, MH6746E, MH6746ES, MH674ME, MH676TE, MS1706, MS1715E, MS171E, PMW2 GT260 - 260mm, No Feet, A4 Drive, Cloverleaf - Used by Belling, Goldstar, LG, Thorn, Matsui
Lifestyle, N18, MX676TC, MX616, ST01, mx752gmsse, MX730SSE, MX310TC, MX310TCSL, MX310, MX707TC, MX709ECSL, MX606GRA34, MX606GR-A34, 997SSG, BM997SSG, BMX997SSG, GMX686TCSL, GMX997SSG, MX210T6, MX310TC, MX315, MX320GM, MX315YL, MX415SL, MX606TC, MX626SL, MX676TC, MX676TCGM, MX686, MX686TCYL, ALMX616, MX697TCGPT, MX720, MX730SSE, MX731SSEG, MX897TCGM, PM800, 100, 120, M100TC, JMB100, JMB120, E06017550GP, 148N26, NN3456B, NN3456BBPQ GT270 - 270mm, 3 Feet, A5+A10 (Cloverleaf) - Used by Alba, Bush, Hinari, Matsui, JMB, Brother, Breville, Goodmans, Panasonic
To enable us to supply you with the correct Microwave Plate (Tray) obviously we need to known what type of tray you require. There are many different types, So the more information you give us, the easier it will be for us to send you the correct one. Your instruction booklet my refer to it as a Glass turntable, Glass turntable plate, Glass tray, Glass ceramic tray, Cook tray, Cook plate or Round splatter shield.
|
|

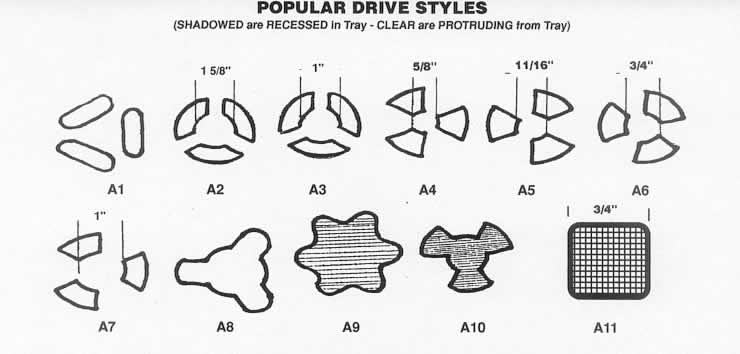

 A11 Square Coupler |
The information we need is:- The MODEL number (not the serial number), The size in mm, What type of drive blobs?, and has it got glass feet? The drawings below show popular drive couplings of triangle shaped glass that couple with the main drive shaft.

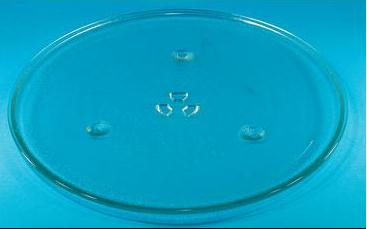

Some Glass Trays have 3 glass blobs on the
underside of the plate
these are used as feet to help pick
the plate up from a flat surface.
Spares & Repairs for domestic & commercial Microwave ovens
Tips for helping us, to help you, in locating parts
for your equipment.
Question. "What do you need to find the part I need"
Answer. "When contacting us please have the Model number & the Make (not serial number) at hand."
Question. "Why is it such a problem obtaining a part for my equipment?"
Answer. "A large amount of Makes are not made by the companies who's name is on the front, i.e. The make Goodmans is a badge name used by suppliers like Comet, Argos.
Question. "Why are some parts so expensive?"
Answer. "If a part is designated by the manufacturer as a safety item, then only that specification part can be supplied. This normally means a genuine part from the manufacturer, with no alternative available."
Just enter your model or part of the number i.e. MX708*
Enter the Part Number or your model number in the search box (without dash's or spaces i.e. R4E54M or you can if you wish enter Part of it i.e. R4E5* this will show all items starting R4E5)
For
Ordering, Terms Information etc. click here
Whatever your Microwave spare part requirements
org@signalsuk.com Please put
Microwave in the subject line
Danger!
Never tamper with the safety interlock switches or the fuse.
Disclaimer:
We assume no liability for any incidental, consequential or other liability from the use of this information or parts supplied. All risks and damages, incidental or otherwise, arising from the use or misuse of the information contained herein are entirely the responsibility of the user. Although careful precaution has been taken in the preparation of this material, we assume no responsibility for omissions or errors. You can receive a serious electrical shock from the components inside a microwave oven-even when it's unplugged! Only a qualified engineer should perform any repair.
