Optical Anti-Static Information

The Laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts.

The flexible board is easily damaged and should be handled with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.

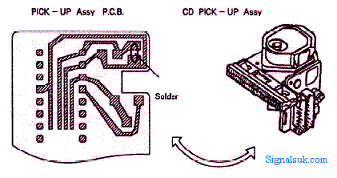

If you have just installed a new laser and it does not function - Check that the Anti-Static Solder Blob/s or clip/s have been removed. For more information, consult the units service manual.

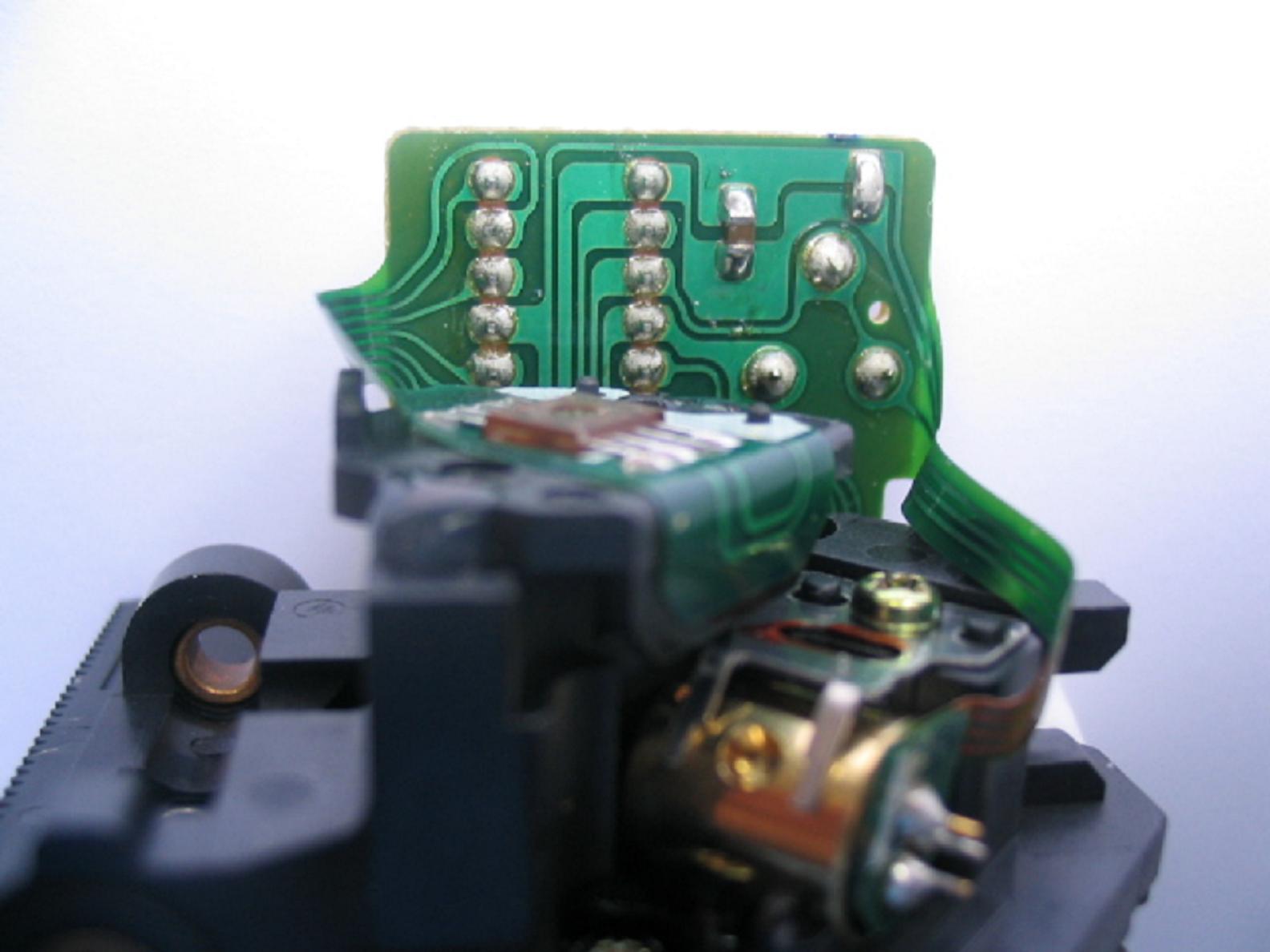

The Anti-Solder Blob is shown here located top right hand corner - This must be removed after installation

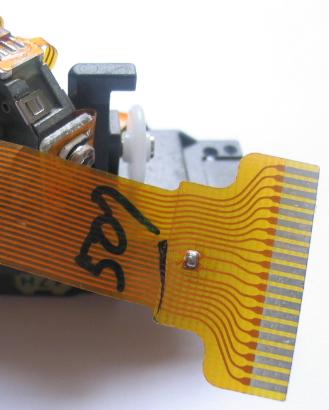

Shown here is the Solder blob on a Ribbon Cable Type

Click Here To Order Online

Q3 - CD player display shows "No Disk" or "Error"

A3 - Sounds like a dirty CD lens or laser unit. We can supply a Lens cleaner or a replacement Laser.

  Whatever your Pick-up requirements

---

Tips for helping us, to help you, in locating parts for your equipment.

Question. "What do you need to find the part I require"

Answer.  "When contacting us please have the Make & the Model number (not the serial number) to hand. Or the Part number"

Question. "Why are some parts so expensive?"

Answer. "If a part is designated by the manufacturer as a safety item, then only that specification part can be supplied. This normally means a genuine part from the manufacturer, with no alternative available."

---

Enquires

When enquiring by Telephone or Email about parts, please supply us with the Model, Chassis or Part Number of the unit, not the serial number.

Asking for a price on say a TV door flap that is 6inc across will not help. But we may be able to help if you state the unit is a Matsui model 20V1T.

---
